Rebonded Foam Making Machine

Rebonded Foam Making Machine

Automatic Rebonded Foam Making Machine

Type  Foaming Machine
Power  19.5kw
Rated Power  16.8kw
Dimensions  L6000mm*W3600mm*H5500mm
No-Load Rotational Speed  0-50rpm
Voltage  3phase 380v 50hz
Certification  CE
Application  Foam Industry, Sponge Industry, Furniture Industry
Supply Ability  30 Sets Per Month
Contact us
Products Description

Products Name:

Automatic Rebonded Foam Making Machine

Features:

Simple operation.

Specifications

Mixing Tank Capacity:

10CBM

Output:

50~80Blocks/day

Mixing Speed:

0~50rpm

Mixing Motor Power:

11kw

Oil Hydraulic Pressure:

12Ton



Re-bonded Foam Density Range:

0~120kg/CBM

One Pneumatic Square Mould Size:

L2100mm*W1600mm*H1200mm(To Be Requested)

Option Of Auto Materials Loading System:

Storage Tanks: 100kg*2pcs, Match With Chinese Pump For Materials Loading. (Choose Available)



Boiler Capacity:

200kg.

Machine N.W:

4250kg

Total Motor Power:

16.8kw

Floor Space:

L6000mm*W3600mm*H5500mm

Products Display

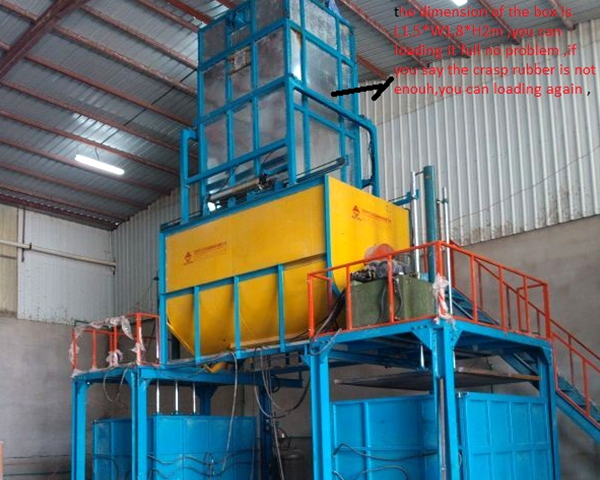

Rebonded Foam Machine

Rebonded Foam Machine
