Strollers Testing Machine

Strollers Testing Machine

Dynamic Durability Strollers Testing Machine

Weight About 400kg
Dimension 2100x1260x2000mm
Power AC380V*3Diameter*2KW
Effective Width Max 1000mm
Up And Down Adjustment Max 300mm
Test Speed 5kw/h±0.1kw/h (adjustable)
Package Plywood box
Supply Ability 15 sets per month
Contact us
Products Description

Products Name:

Dynamic Durability Strollers Testing Machine

Application:

This machine is designed according to CNS baby-car dynamic abrasion durability test regulations.

Method: place a baby mode in the car, and fix the car on the test table, adjust the speed of the conveyor belt to 1.4±0.1m/sec. Check whether the car is damaged, after keeping it for 64 hours. When reaching the setting times, it will stop automatically. It is assembled with light sensor, which can prevent damage of the machine when the baby-car is out of control.

It used to test the dynamic durability of wheel and the whole car when simulate the moving on the road.

Specifications

Experiment work

Single-seater body(front and rear)

Drive mode

Roller wheel drives the rubber conveyor belt for moving and the driven by special aluminum alloy conveyor belt

Drive horsepower

AC380V*3diameter*3HP

Up and down adjustment

Max 300mm

Effective width

Max 1000mm

Test count

LCD digital display with six digits

Bearing load

Max 50 pounds

Shape of impact block

Trapezium, half arc or specified

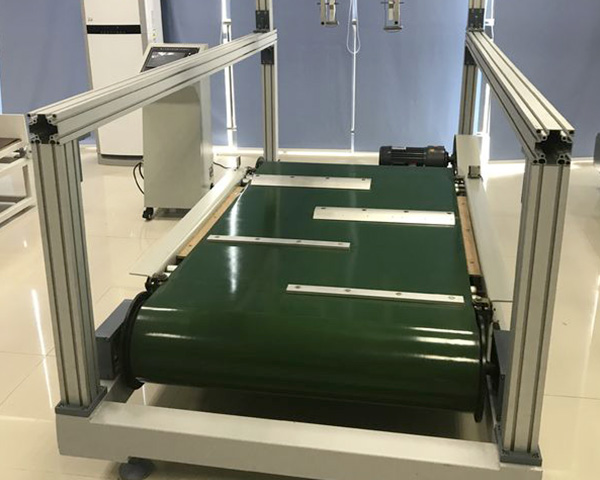

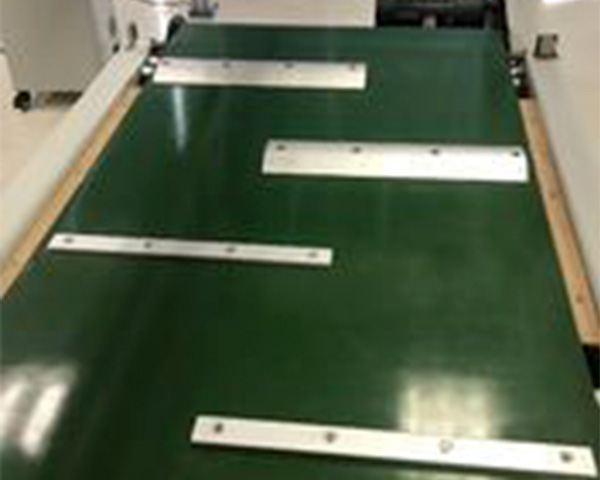

Products Display

Strollers Testing Machine

Strollers Testing Machine

Strollers Testing Machine
