Frame Size |
2.5x2.5x2m（L×W×H） |
|
Material |
80x80mm aluminum |
Products Name:

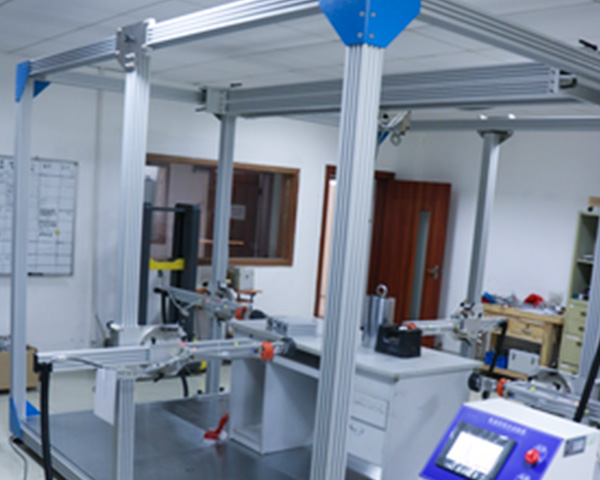

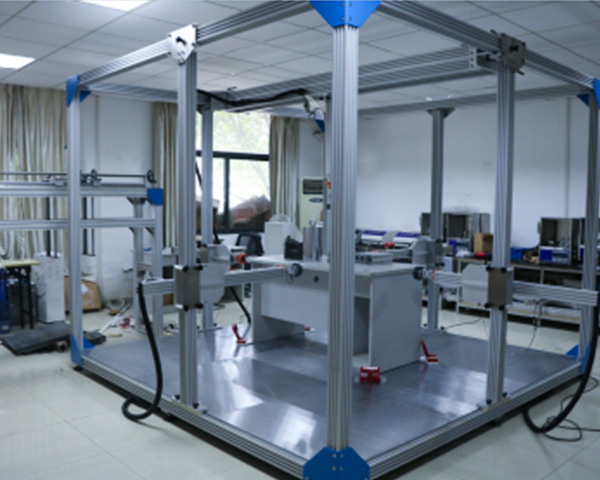

General Purpose Tester for Beds & Mattress
Application:
Used to test the strength and durability of each part of furniture through each part of furniture is under one-off or repetitive load in the normal use or wrong use condition. It is used for testing the mechanical performance of all kinds of desk chest and bed.
This tester can be used for doing the horizontal static loading test and also can do horizontal durability test.
|
|
|
|
Loading cylinder |
Four diameter: 50mm; route: 300mm |
|
Loading force value (Max) on the theory |
1500Nþ |
|
Force value induction |
High-precision power sensor |
|
Capacity |
3KNþ |
|
Control way |
PLC control |
|
Counter |
0~999999 can be set |
|
Source of gas |
7kgf/cm^2 or More stable air source(Customer should bring your own) |
