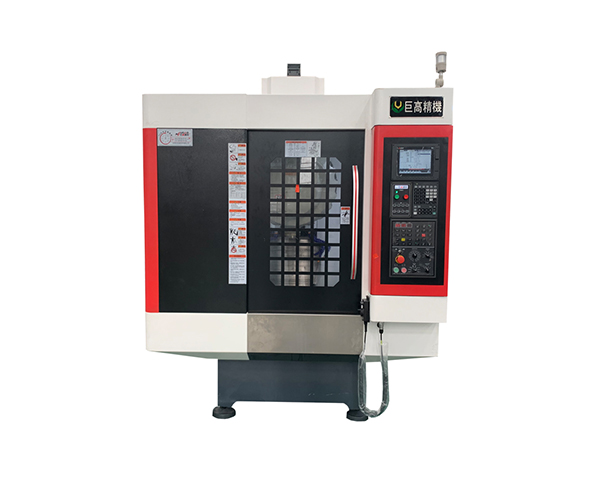

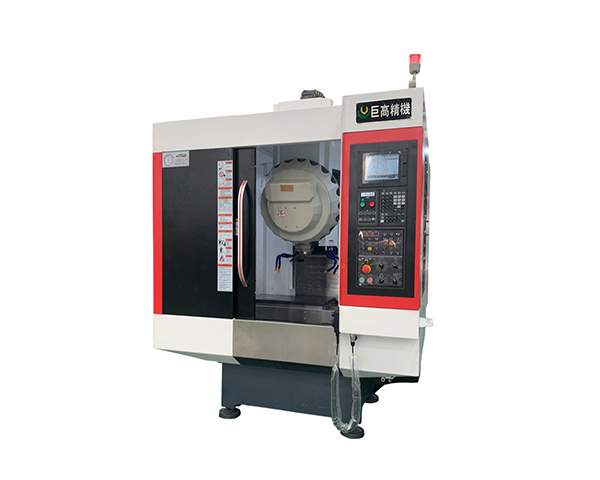

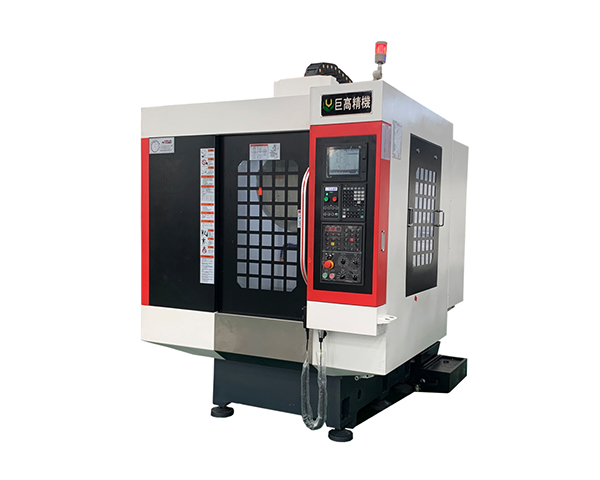

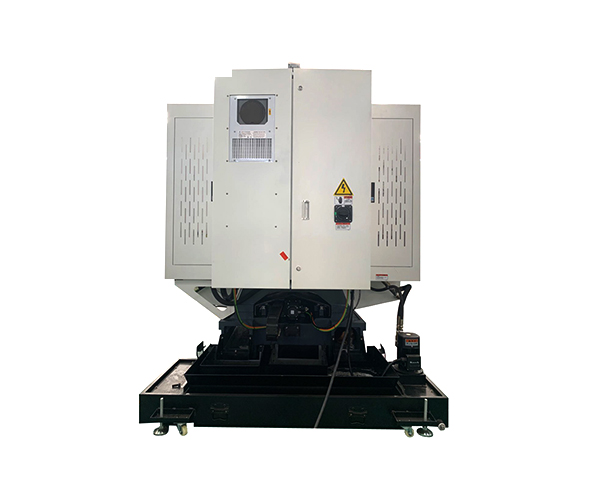

CNC Drilling & Tapping Centers feature a small footprint. Ultra-compact High-Speed CNC Tapping Center. 12,000 to 24000 RPM BT30 spindle which can rigid tapping at 6,000 RPM.
|
Technical parameters |
unit |
TC-640 |
|
Travel |
|
|
|
X axis |
mm |
500 |
|
Y axis |
mm |
400 |
|
Z axis |
mm |
300 |
|
Spindle nose to the table |
mm |
150-450 |
|
Spindle center to the column |
mm |
450 |
|
Working table |
|
|
|
size |
mm |
650*400 |
|
T slot（size*slots*gap) |
mm |
14*3*120 |
|
Max loading |
kg |
300 |
|
spindle |
|
|
|
Spindle taper |
# |
BT30-100 |
|
Speed |
r.p.m |
20000 |
|
Transmission |
# |
Direct type |
|
Feed |
|
|
|
Cutting feed |
m/min |
10/10/10 |
|
Rapid feed |
m/min |
48/48/48 |
|
Accuracy |
|
|
|
Positioning |
mm |
±0.005/300 |
|
Repeat positioning |
mm |
±0.003/300 |
|
Tool magazine |
|
|
|
Tools |
Pcs |
16/21 |
|
Max tool weight |
Kg |
3 |
|
Max tool length |
mm |
200 |
|
Tool diameter（full load/without adjacent tool） |
mm |
60/80 |
|
Tool magazine type |
# |
Insert arm type |
|
Motor |
|
|
|
Spindle motor power |
Kw |
5.5 |
|
X/Y/Z motor power |
Kw |
1.5/1.5/2.2 |
|
Screw/guide rail |
|
|
|
Screw diameter×thread pitch |
mm |
32×20/20/16 |
|
Linear guideway width |
mm |
X:30/Y:30/Z:35 |
|
other |
|
|
|
Air pressure |
Kgf/cm2 |
6.5 |
|
Water-tank capacity |
L |
160 |
|
Net weight |
Kg |
3200 |
