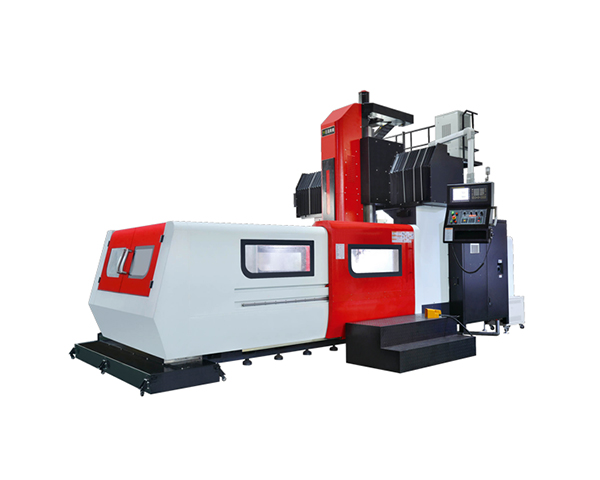

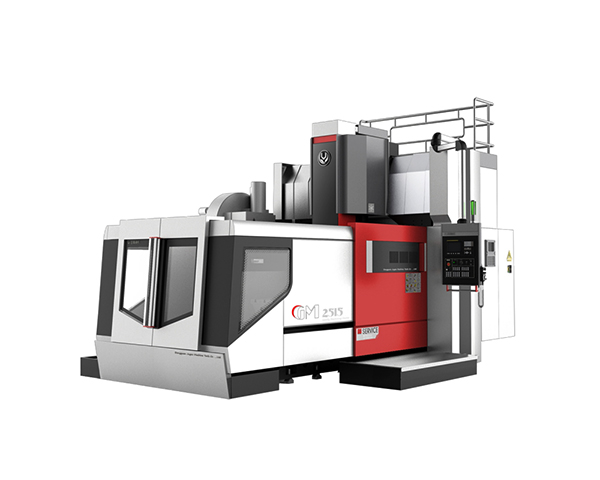

This series is the fix-column bridge type machining center which adopts fixed crossbeam and column, but moveable table . X and Y axes use the roller type linear guide way, and Z axis offers box way or linear guide way according to customer’s needs. In addition, it can be equipped with various types of manual attaching head (90 degrees milling head, universal head,extension head, multi-directional head etc.). Applicable to all kinds of parts processing, mold processing, aluminum parts and aerospace transportation parts processing industry etc.
High Rigidity Structural Design
-A-ribbed base structure with multiple supporting points provides X-axis with the best straightness.
-Work table fully supported by base provides perfect dynamic accuracy.
-Wide span saddle provides both horizontal and vertical support which decentralizes the load caused from head weight and spindle during machining.
-One piece high rigidity column offers low deformation, providing Y-axis with the best straightness.
Premium components increase performance
-Z axis with two sets of counter weighted oil cylinder can also balance the weight of the spindle head.
-Roller type linear guideways on both X/Y-axis provides low friction, non-backlash, high rigidity and high precision
-High damping boxway on Z-axis absorbs vibration, prolongs tool life and enhances surface precision
-Shortening the length of the gear box drive shaft, effectively reduces the vibration.
-Dual chip augers with conveyor offer efficient chip removal Simple plate metal design reduces chip accumulationn
-Fully enclosed, side-mounted, swing-arm ATC gives you more room to work and has more tool capacity.
|
Parameters |
Unit |
GM-1614 |
|
Travel |
|
|
|
X axis |
mm |
1600 |
|
Y axis |
mm |
1600 |
|
Z axis |
mm |
750 |
|
Spindle nose to working table |
mm |
250-1000 |
|
Spindle center to the column |
mm |
449 |
|
The distance of between two columns |
mm |
1450 |
|
The height from table surface to the beam |
mm |
1140 |
|
Working table |
|
|
|
Size |
mm |
1800*1200 |
|
T slot（size*slots*gap) |
mm |
22*7*180 |
|
Max loading |
Kg |
4000 |
|
Spindle |
|
|
|
Spindle taper |
# |
BT40-150 |
|
Speed |
r.p.m |
12000/15000 |
|
Transmission method |
# |
Direct drive |
|
Feed |
|
|
|
Cutting feed |
m/min |
6/6/6 |
|
Rapid feed |
m/min |
24/24/24 |
|
Accuracy |
|
|
|
Positioning accuracy |
mm |
±0.005/300 |
|
Repeat positioning accuracy |
mm |
±0.003/300 |
|
Tool magazine |
|
|
|
Tools |
Pcs |
24/optional |
|
Max tool weight |
Kg |
15 |
|
Max tool length |
mm |
300 |
|
Tool diameter(full load/without adjacent tools) |
mm |
112/200 |
|
Tool magazine type |
# |
Drum type |
|
Motor |
|
|
|
Spindle motor power |
Kw |
11 |
|
X/Y/Z axis motor power |
Kw |
7.0/4.5/4.5 |
|
Ball screw/ guide ways |
|
|
|
Screw diameter x screw pitch |
mm |
XY:50*10/Z:40*10 |
|
Linear guide ways width |
mm |
XYZ: 45/45/45 |
|
Others |
|
|
|
Air pressure |
Kgf/cm2 |
6.5 |
|
Water tank capacity |
L |
400 |
|
Power require |
KVA |
40 |
|
Net weight |
Kg |
16000 |
|
External size |
mm |
5000*3200*4200 |
