Weight |
180kg |
|
Power |
220v 50/60HZ |
|
Standard |
UL94, IEC60695, GB5169 |
|
Package |
Wooden Box |
|
Supply Ability |
10 sets per month |
Products Name:
Flammability Testing Equipment For Plastic Fire Resistance Test
Application:
Used to determin the flammability of plastic materials for parts in devices and appliances. The apparatus is supplied as a complete system incorporating all the features necessary for ease of use safety. It conforms to all five UL 94 horizontal and vertical burner tests and associated ASTM international standards.
A bench mounted draft free combustion chamber having a large inside volume and fitted with an interior light and exhaust fan to enable simple evacuation of combustion products.
Large door and window made from toughened safety glass giving a generous view of the specimen during a test. Fully adjustable horizontal and vertical specimen supports.

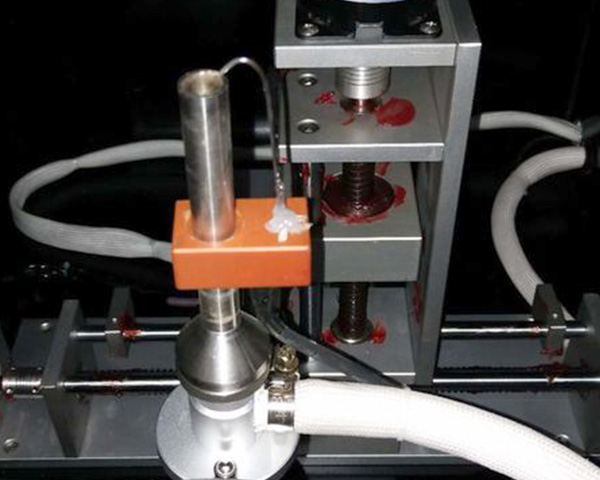

A burner in compliance with ASTM D 5025, with simple angle adjustment (0°, 20°, 45°) and precision gas control system including gas flow meter, pressure regulator and pressure gauge.
Two access ports enabling easy entry to the chamber for movement of the burner and specimen.
A burner wing tip.

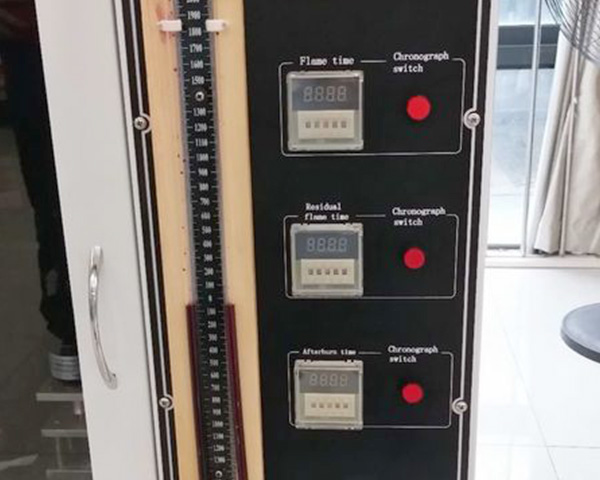

Three digital test duration timers for accurate but simplified operation.
