Weight |
250kg |
|
Test Speed |
0.01 - 500mm / Min |
|
Package |
Plywood |
|
Supply Ability |
100 sets per month |
Products Name:

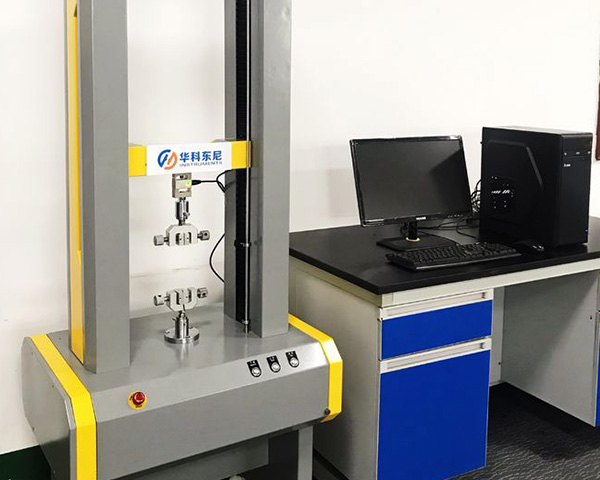

High Speed Rubber Film Tensile Testing Equipment
Application:
This universal machine can do various strength testing in the field of rubber, plastics, chipboards, foam, plastic, film, flexible packaging, pipes, textiles, fibers, nanomaterials, polymers, composite materials, synthetic materials, packaging, paper, wire and cable, fiber optic cable, wirecables, seat belt, seat belt, leather belt, shoes, tape, polymer, copper, spring steel wire, stainless steel, castings, brass, non-ferrous metals, car parts, alloys and other non-metallicmaterials and metallic materials.
|
Maximum force capacity |
200kg,500kg,1000kg,2000kg (choose) |
|
Force measurement accuracy |
0.5% high accuracy,0.5 class |
|
Test stroke |
Beam to worktable 1100mm, test stoke 800 including grips,effective test width: 380 mm, or specified per customer |
|
Test speed |
0.005 - 500mm / min stepless, or specified per customer |
|
Display |
Test data and curve dynamic display during material testing |
|
Curves |
Load/displacement/time, stress/strain/time |
|
Auto Zero |
System will auto zero once next test start |
|
Result Reading |
Test data record save and check freely, point reading analyse on curves |
|
Motor |
AC Servo motor and servo drive controller |
