Control Way |
Touch Screen + PLC Control |
|
Max Capacity |
2kn |
|
Package |
Plywood |
|
Supply Ability |
10 sets per month |
Products Name:
Mattress Durability Furniture Testing Machine
Features:
Furniture Testing Machine
Application:

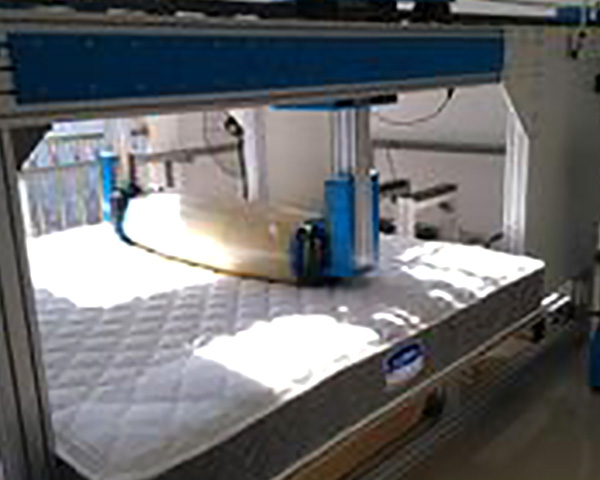

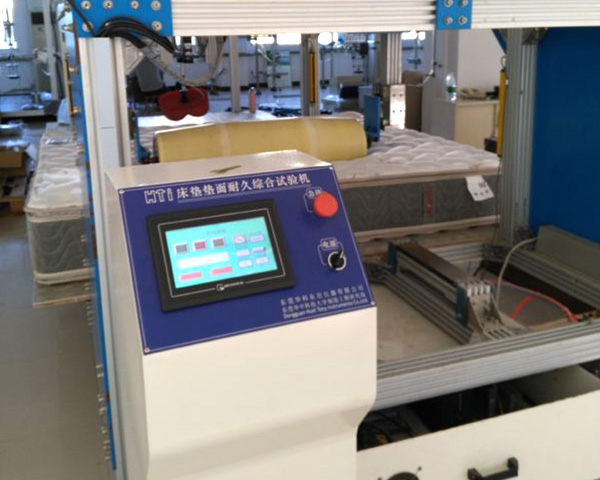

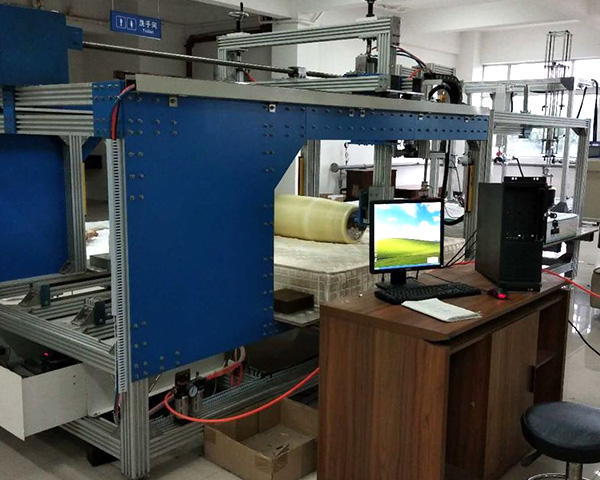

This tester is designed according to the latest national standard. It is suitable for a set of durability testing for spring soft mattress,and relevant measurement of it. It uses a certain weight of roller to do rolling test on the center of mattress, simulating the effects to the
mattress after the body of people rolls on it. The tester does loading durability test for the edge of mattress using specified loading cushion and force value. It can also simulate a people sits on the edge of the mattress, and the effect caused by the bottom loading on the mattress. After a certain number loading, compare the height of cushion surface and its surrounding edge before and after the test. Assess the quality of the mattress according to change of hardness and damage of mattress.
|
Rolling test stroke: |
The mattress mid-line left and right are both 500 mm |
|
Rolling test speed: |
16±2Cycles per minute |
|
Roller: |
Roller: 1400N, The middle diameter: 300mm, Both ends diameter: 250mm, length: 1000 |
|
Counter: |
0~999999 can be set. |
|
The control way |
Touch screen + PLC control |
|
Loading cushion on the edge: |
buttocks shape, 380mmx495mm |
|
Loading parts on the edge: |
The midpoint on the long edge of the mattress.200 mm from edge |
|
Loading force on the edge: |
1000N |
|
Loading time on the edge: |
3S |
|
Position of measurement: |
Mattress center, Left and right are both 250mm, the midpoint on the long edge of the mattress 200 mm inward. |
|
Loading plate of measurement: |
Diameter 355mm, Radius of curvature of the end R800mm |
|
Capacity of force sensor: |
2kN |
|
Loading speed |
90±5mm/min |
|
Stroke: |
500mm |
|
Drive motor: |
Servo motor |
